FrameBudget Lab - Performance Regression & CI Gate

FrameBudget Lab turns one-off profiling into repeatable performance evidence.

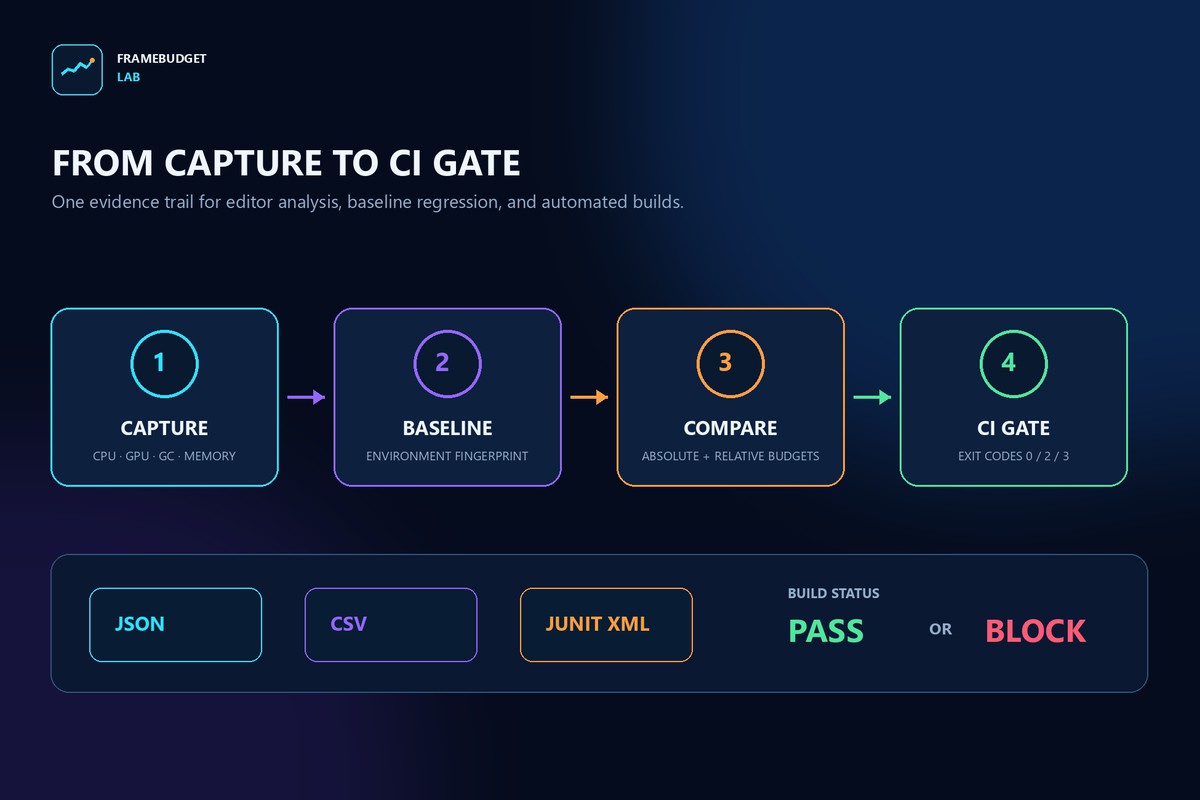

Capture a controlled sampling window in the Editor or a Player build, inspect tail latency instead of relying on averages, compare the result with a trusted baseline, and produce a clear Pass, Warning, Fail, or Incomparable verdict. When a regression breaks your agreed budget, the same evidence can block an automated build through deterministic exit codes and JUnit XML.

WHAT IT MEASURES

• Frame, CPU, and GPU frame time
• GC allocations per frame
• System and Unity-used memory
• Draw calls, SetPass calls, batches, and triangle count

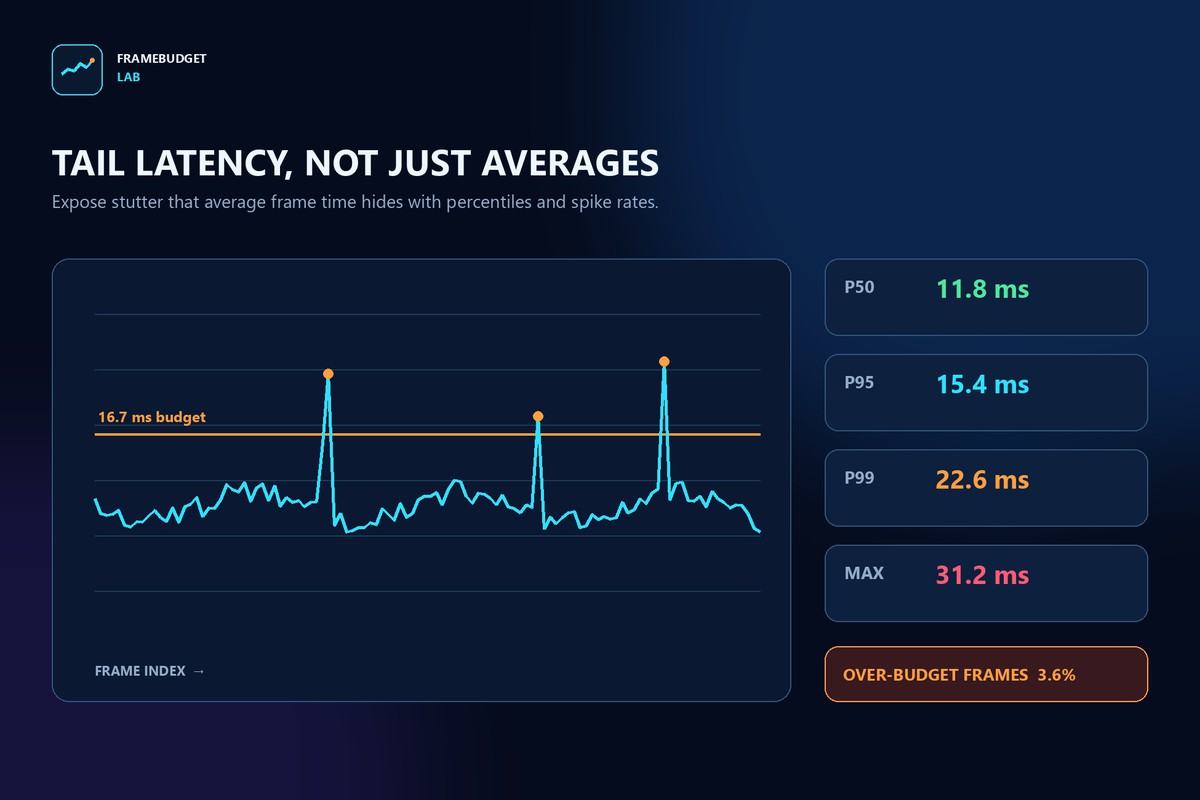

• Mean, P50, P95, P99, maximum, and over-budget spike rate

TRUSTWORTHY COMPARISONS

• Fixed warm-up and measured-frame windows
• Allocation-conscious sampling into a preallocated buffer
• Absolute limits and relative-to-baseline regression limits

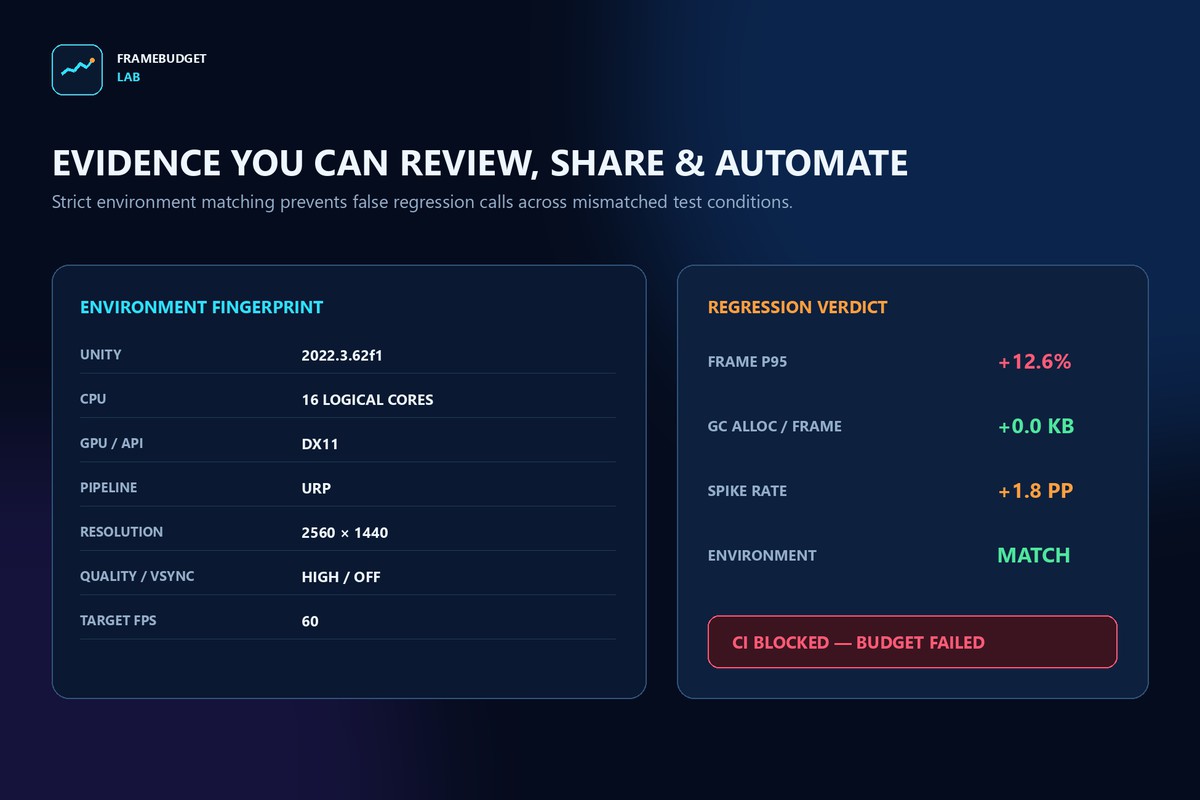

• Strict environment fingerprinting for Unity version, platform, CPU, graphics device/API, render pipeline, resolution, quality, VSync, and target frame rate
• Explicit Incomparable results when test conditions do not match
• Unavailable platform counters remain marked unavailable instead of silently becoming zero

EVIDENCE AND AUTOMATION

• JSON reports for complete run evidence
• CSV export for frame-level analysis
• JUnit XML for CI systems
• Batch-mode exit codes: 0 Pass, 2 budget failure, 3 invalid or incomparable input
• Reports can be produced in Editor Play Mode or saved from Player builds

INCLUDED

• English and Simplified Chinese editor interface
• English and Simplified Chinese offline documentation
• Ready-to-open demo scene and default performance profile
• Built-in self-test command
• No Asset Store package dependencies

GPU timing and individual rendering counters depend on the target platform and graphics API. For release decisions, profile on the target device; Editor Play Mode remains useful for iteration. FrameBudget Lab reports unavailable counters clearly and records the test environment so you can judge evidence correctly.

FrameBudget Lab is a measurement, comparison, and regression-gating tool. It does not automatically rewrite or optimize project content.
