Take Full Control of Your Debug Pipeline
Stop hunting through Unity's default Console. BT-LogStudio intercepts every Debug.Log call at the engine level and surfaces your logs in a structured, filterable, and exportable interface without touching your code or breaking the standard Console window. Built entirely with UI Toolkit for a native Unity 6 experience.

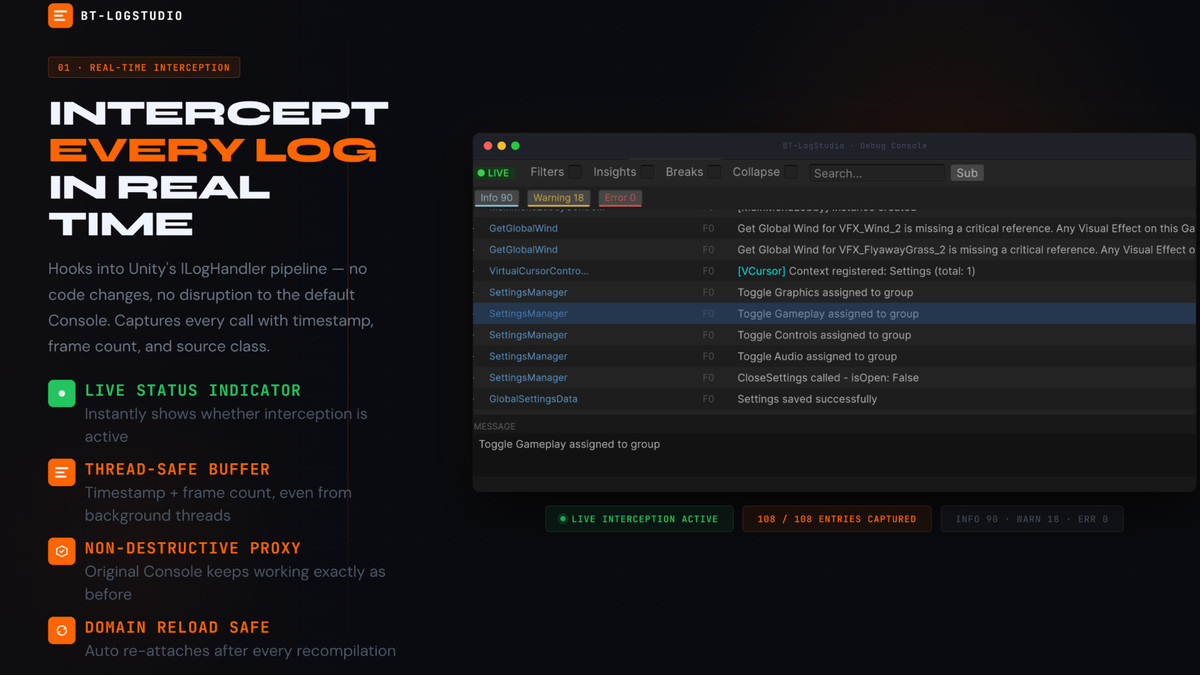

Real-Time Log Interception
- Non-Destructive Proxy: Wraps Unity's ILogHandler pipeline so the original Console continues working exactly as before.
- Thread-Safe Buffer: A circular buffer captures every log with timestamp, frame count, and source class even from background threads.
- Live LIVE / OFFLINE Indicator: Instantly shows whether interception is active. No guessing.
- Domain Reload Safe: Automatically re-attaches after every script recompilation and Play Mode transition.

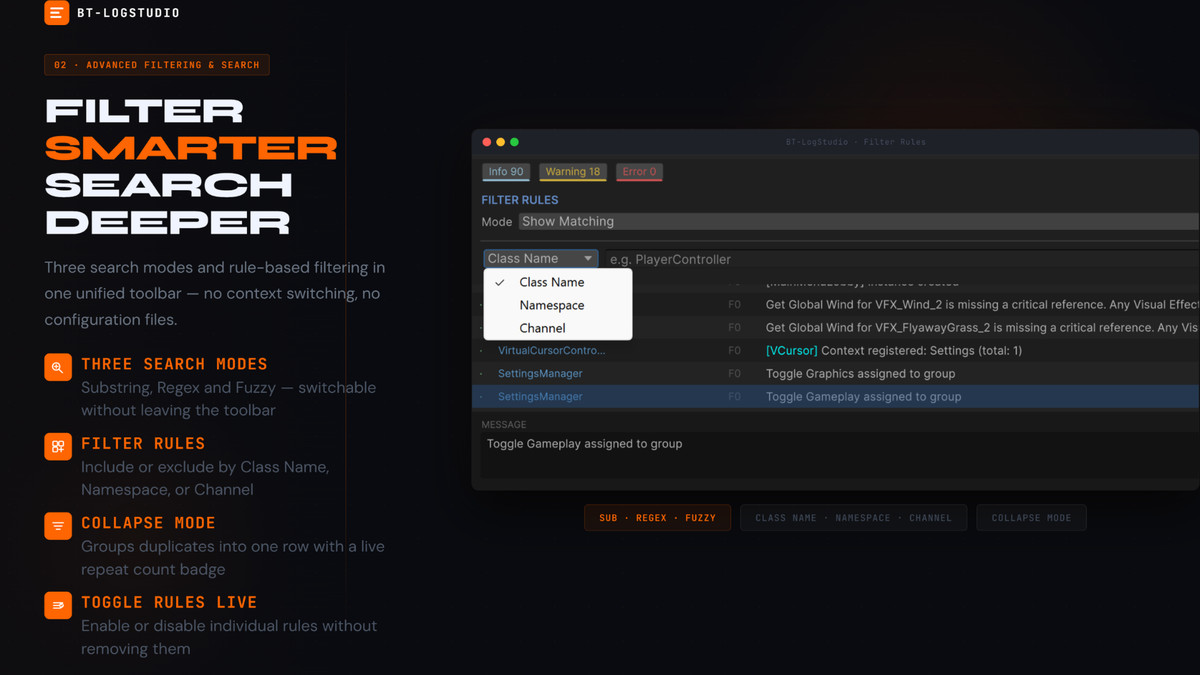

Advanced Filtering and Search
- Type Bar: One-click Log, Warning, and Error toggles with live unfiltered counts.
- Three Search Modes: Substring for fast queries, Regex for precise patterns, and Fuzzy for abbreviated typing switchable without leaving the toolbar.
- Filter Rules: Include or exclude logs by class name, namespace, or channel. Toggle individual rules on and off without removing them.
- Collapse Mode: Groups identical messages into a single row with a repeat count badge just like the native Console but smarter.

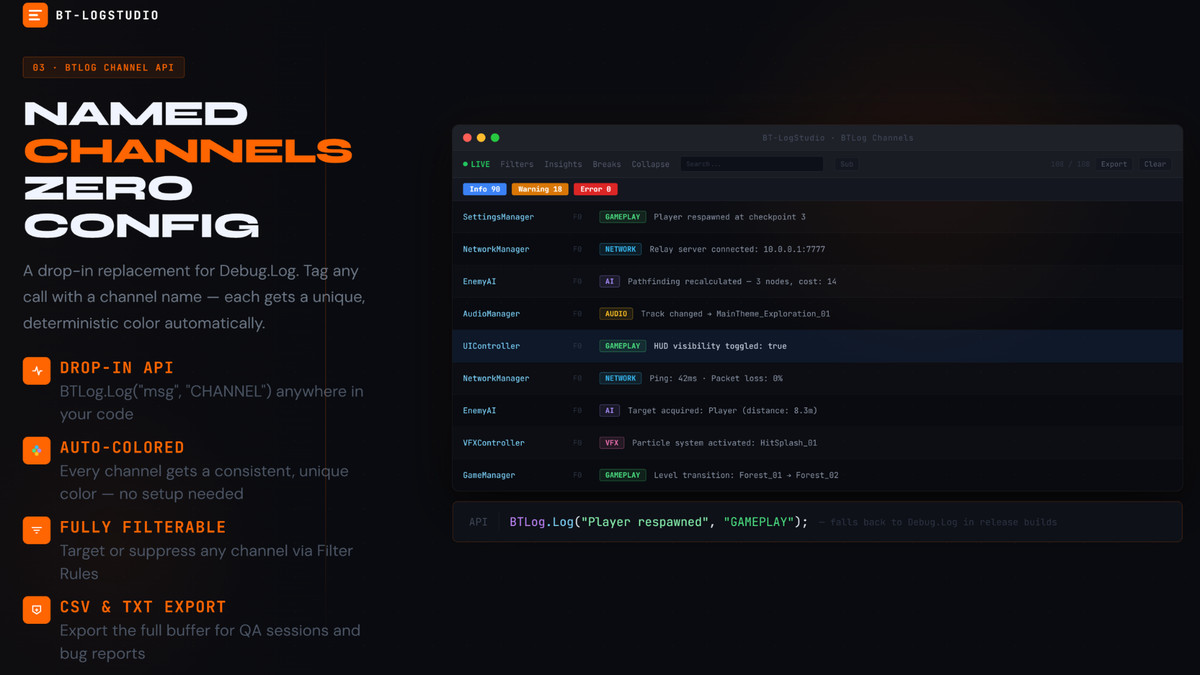

BTLog Channel API
- Named Channels: Tag any log call with a custom channel using the drop-in BTLog class. GAMEPLAY, NETWORK, AI you define them.
- Deterministic Color Coding: Every channel gets a unique, consistent color in the log list. No configuration needed.
- Filterable: Target or suppress any channel using Filter Rules with partial or exact matching.
- Safe Fallback: When BT-LogStudio is not intercepting, BTLog falls back silently to standard Debug output. Safe in release builds.

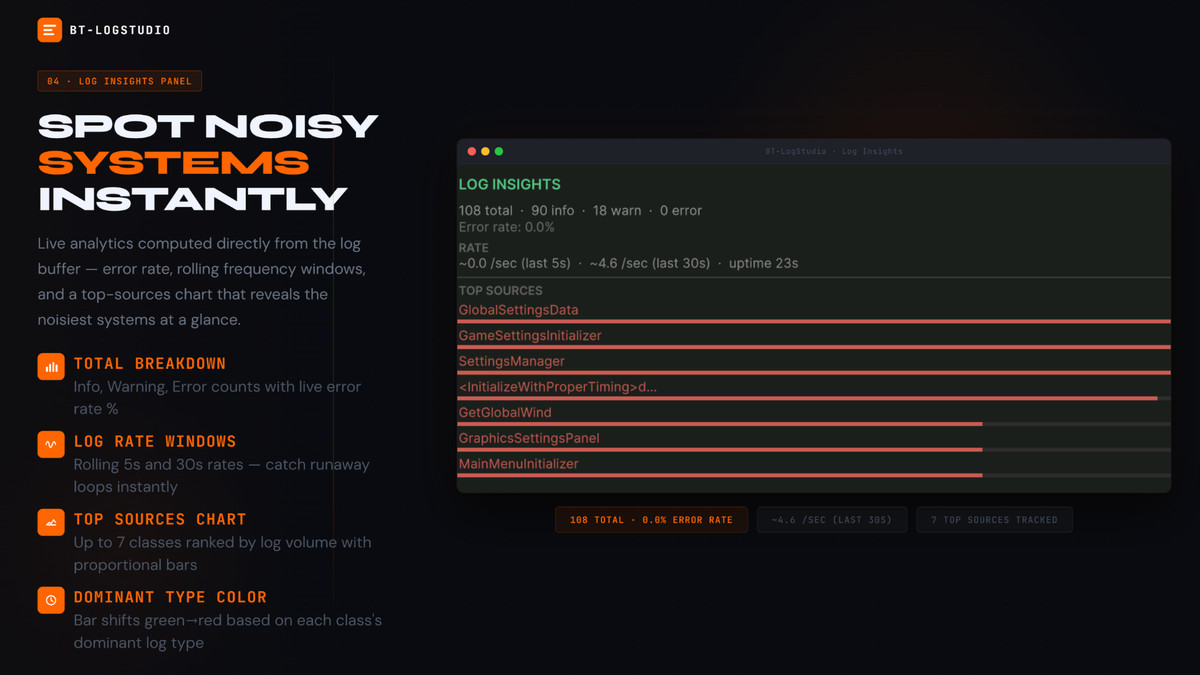

Log Insights Panel
- Live Analytics: Total count breakdown by type, error rate percentage, and log rate over the last 5 and 30 seconds.
- Top Sources Chart: Up to 7 source classes ranked by log count with proportional bars and percentage. Instantly spot noisy systems.
- Dominant Type Color: Each bar reflects the dominant log type for that class green for clean systems, red for problematic ones.
Conditional Break Rules
- Pause on Error: Automatically pauses Unity Play Mode the moment any Error, Exception, or Assert is logged.
- Pattern-Based Breaks: Define custom break conditions matching against the log message, source class, or namespace.
- Play Mode Only: Break rules are evaluated exclusively during Play Mode and have zero overhead in the editor.

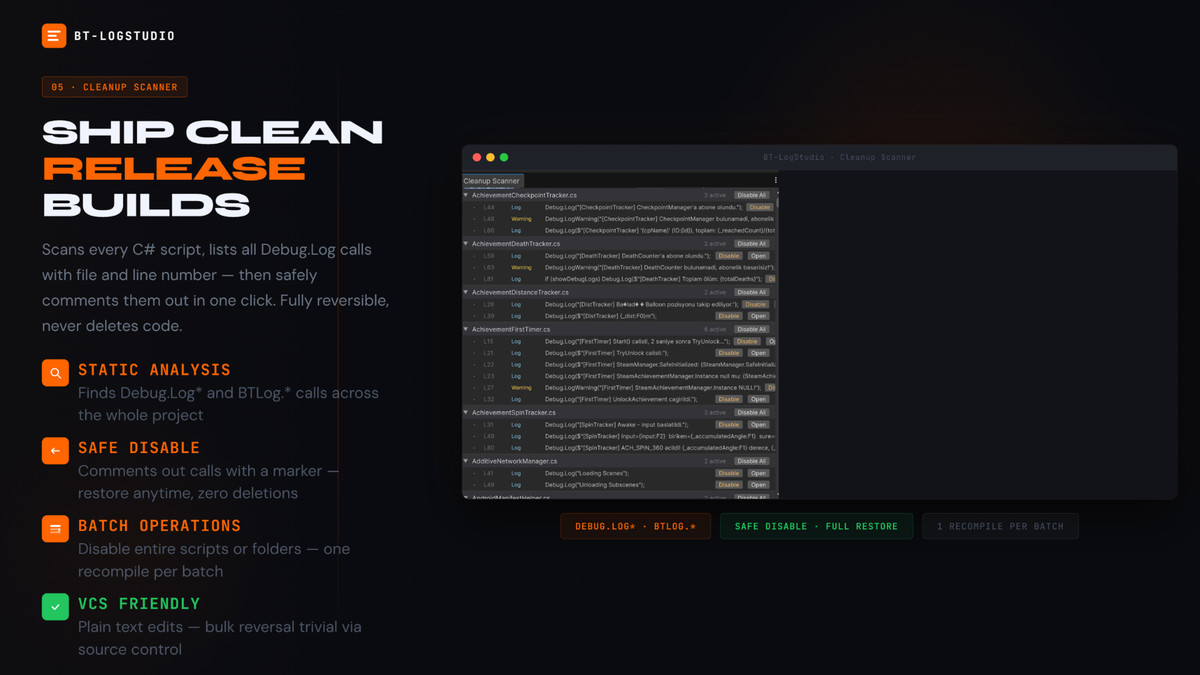

Pre-Release Cleanup Scanner
- Static Analysis: Scans every C# file in your project and lists all Debug.Log* and BTLog.* calls with file, line, and preview.
- Safe Disable: Comments out selected calls with a unique marker no deletions, fully reversible at any time.
- Batch Operations: Disable or restore an entire script, folder, or the whole project in a single click. One recompile per batch not one per line.
- Restore Anytime: Re-enable disabled calls individually or all at once before your next development session.
- Version Control Friendly: All changes are plain text edits. The BT-LogStudio:disabled marker makes bulk reversal trivial via source control.

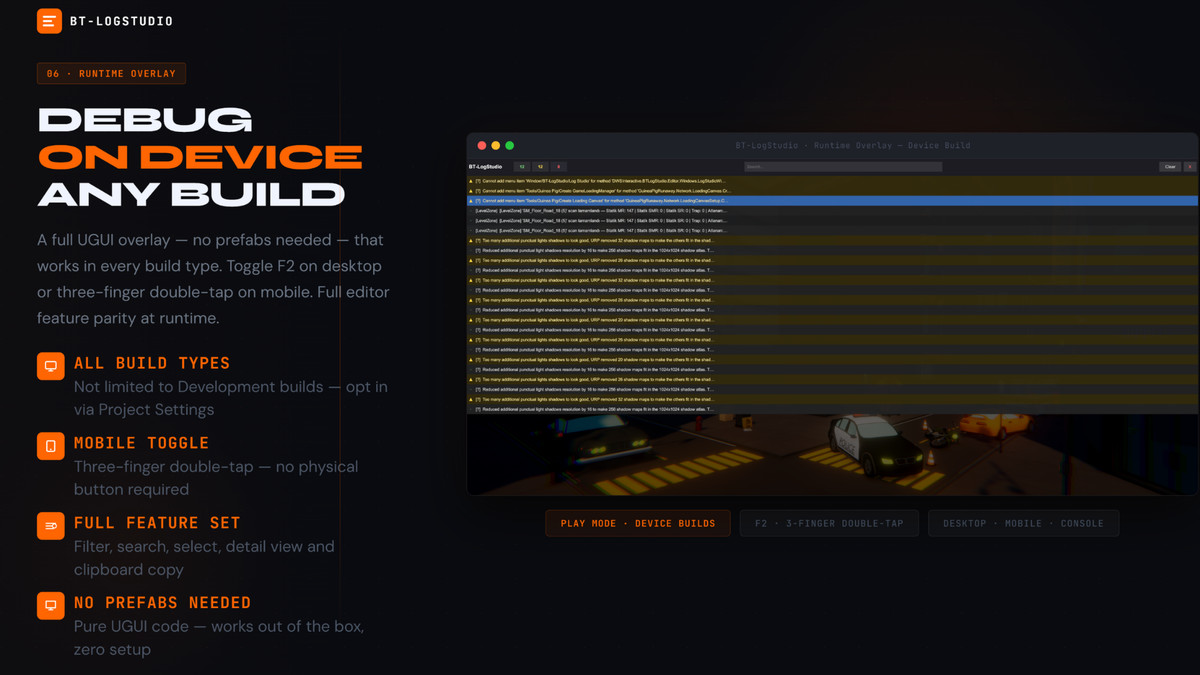

Runtime Overlay
- In-Game Panel: A full UGUI overlay that works in Play Mode and in device builds. No prefabs or external assets required.
- All Build Types: Not limited to Development builds. Opt in via Project Settings.
- Mobile and Desktop Toggle: F2 on desktop. Three-finger double-tap on mobile.
- Full Feature Set: Type filtering, text search, row selection, detail view, and clipboard copy all available at runtime.
Professional Editor Experience
- Detail Pane: Click any log row to see the full message and stack trace with horizontal and vertical scrolling.
- Ctrl+C Copy: Copy any selected log's message and stack trace to the system clipboard instantly.
- Double-Click to Script: Jump directly to the source script in your external editor with a double-click on any log row.
- Right-Click Context Menu: Copy Message, Copy Stack Trace, Copy All, and Open Script right where you need them.
- Arrow Key Navigation: Move through the log list with the keyboard. Detail pane updates automatically.
- CSV and TXT Export: Export the full current buffer to a structured file for QA sessions or bug reports.
Performance Controls
- Stack Capture Mode: Choose Always for accurate source information, ErrorsOnly to reduce overhead on high-frequency logs, or Never to eliminate call stack allocation entirely.
- Configurable Buffer Capacity: Cap the in-memory buffer to prevent unbounded growth during long sessions.
What You Get
- Complete C# source code with clear documentation comments.
- Full PDF documentation covering every feature and setting.
- BT-LogStudio Editor Window, BTLog Channel API, Cleanup Scanner, and Runtime Overlay.
- Life time Direct developer support
