VR Assembly Factory

[Documentation]

(Tested on Unity 2022.3 and above)

Typical Use Cases:

• VR assembly games
• Industrial training simulations
• Automobile parts visualization
• Medical equipment training
• Industrial assembly simulations
• Educational simulations

Key Features:

Automatic Assemblable Setup

Quickly generate complete assembly logic from your model hierarchy with one command.

Smart Socket Detection

Automatically identifies sockets and attachable parts based on mesh contact and hierarchy order.

Fallback Collider-Based Detection

For models without precise mesh contacts, has a second method to detect relationships via expanded colliders.

XR Toolkit Integration

Built on Unity’s XR Interaction Toolkit, enabling physics-based part grabs and attachment behavior in VR.

Attach & Completion Events

Trigger custom events when specific parts or all parts are assembled.

Flexible Socket Manager

Assign multiple valid plugs per socket, customize rotation offsets, and fine-tune placement without coding.

Tag & Cleanup Utilities

Automatically assigns unique tags for attachment segregation and includes tools to clean unused part tags.

Prerequisites:

• Required: Unity XR Interaction Toolkit.
• Model Compatibility: Works with any modular 3D model using Mesh Renderers (not Skinned Mesh Renderers)

What's Included:

• Core VR Assembly scripts and Editor tools.
• Automated Socket & Attach point system.
• Clean-up utilities for tag management.
• Documentation

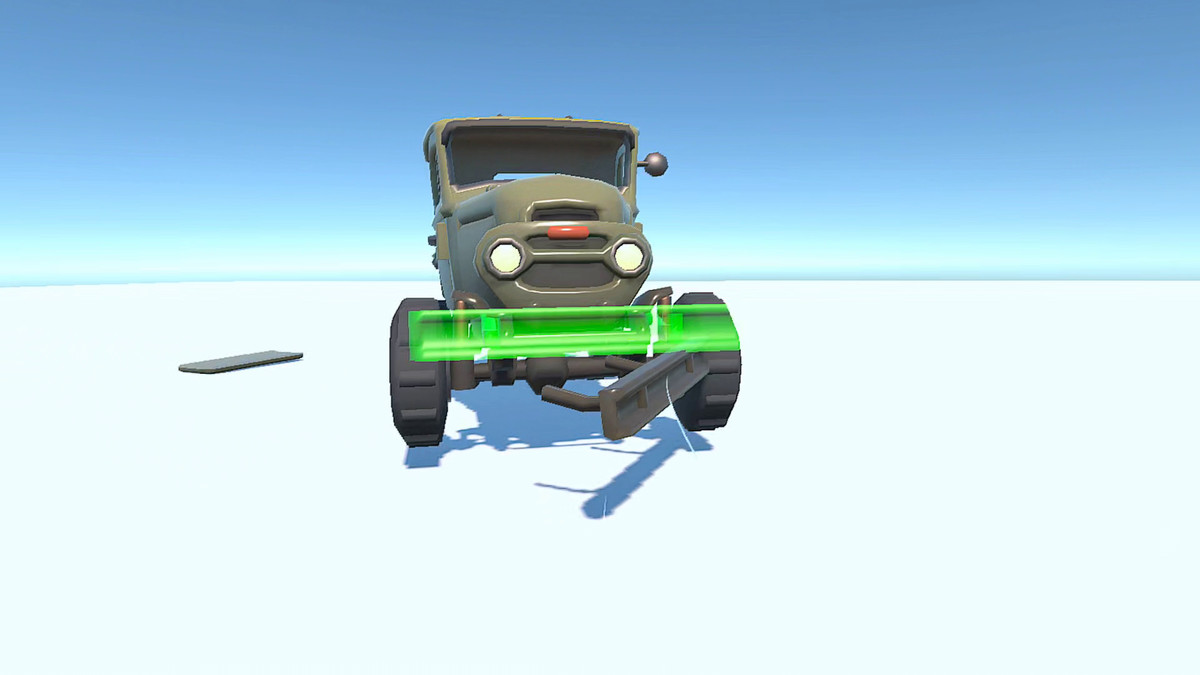

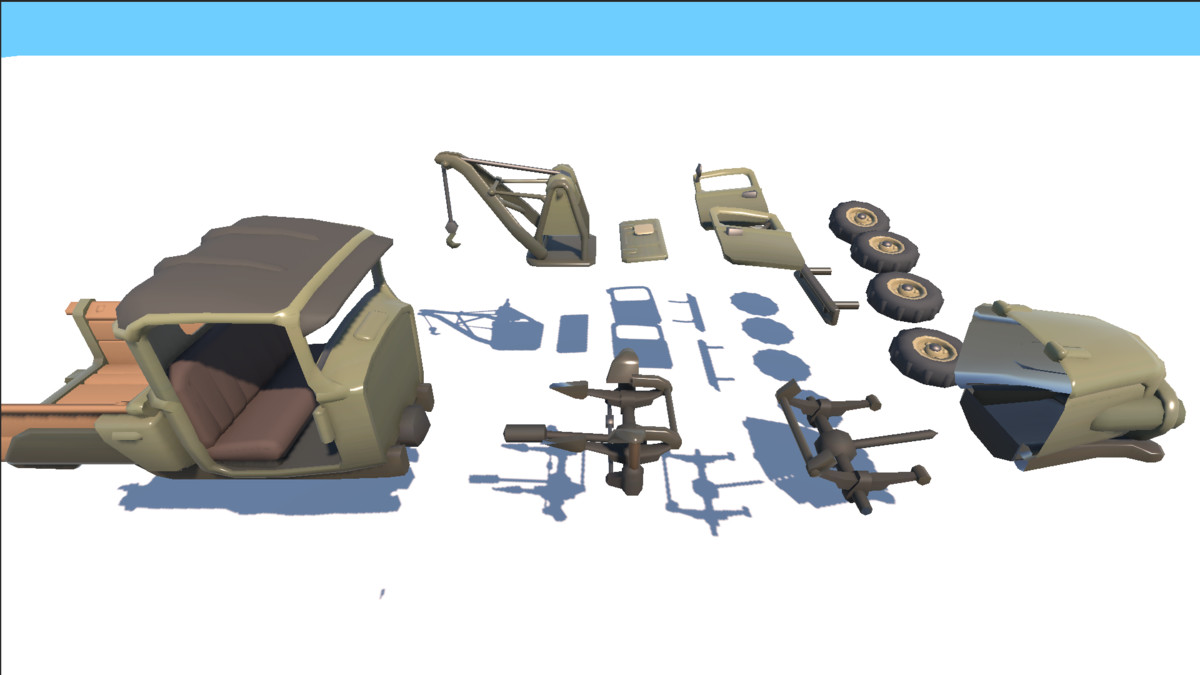

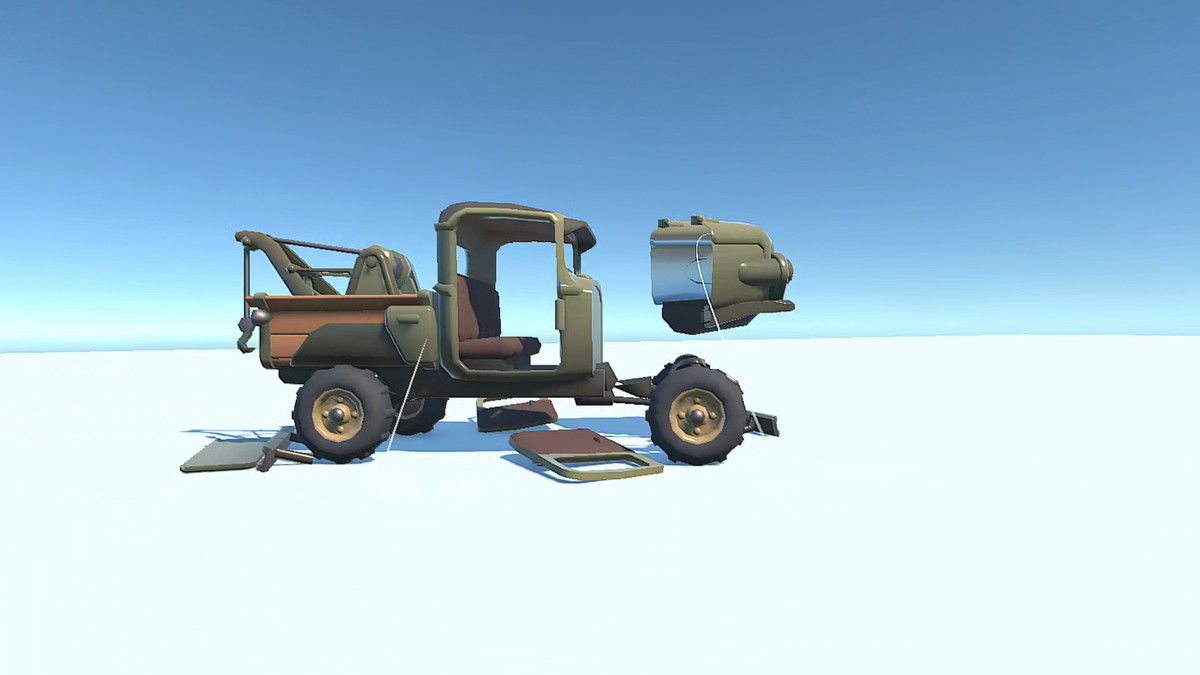

• Truck model
