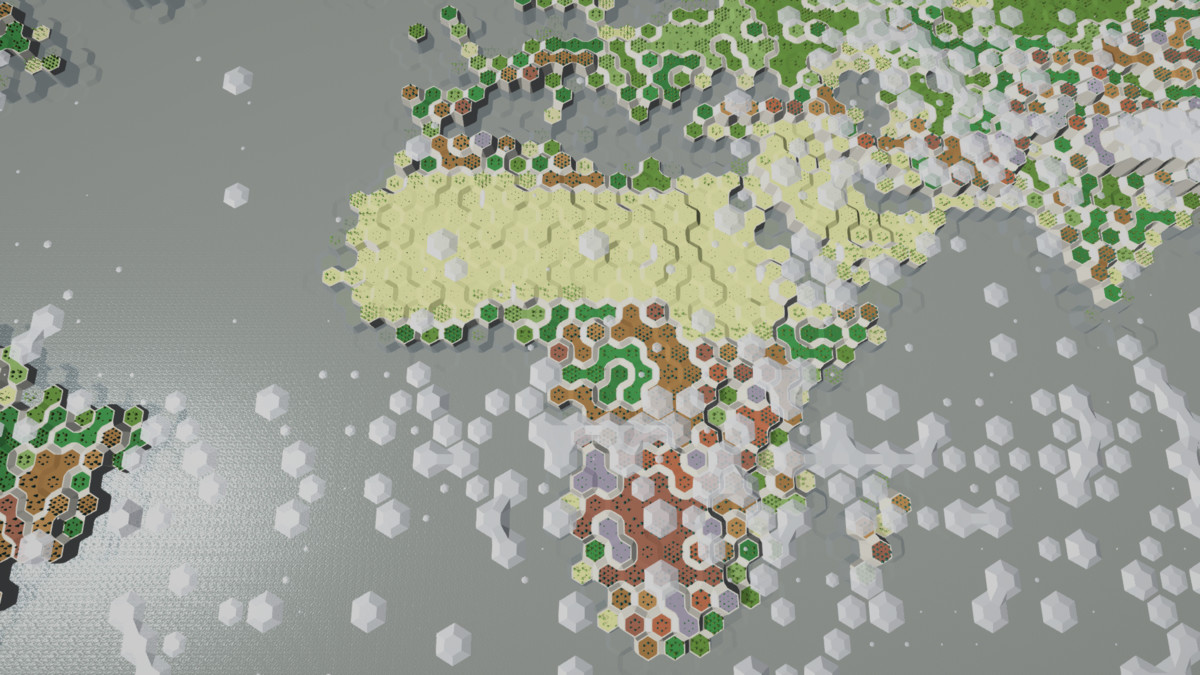

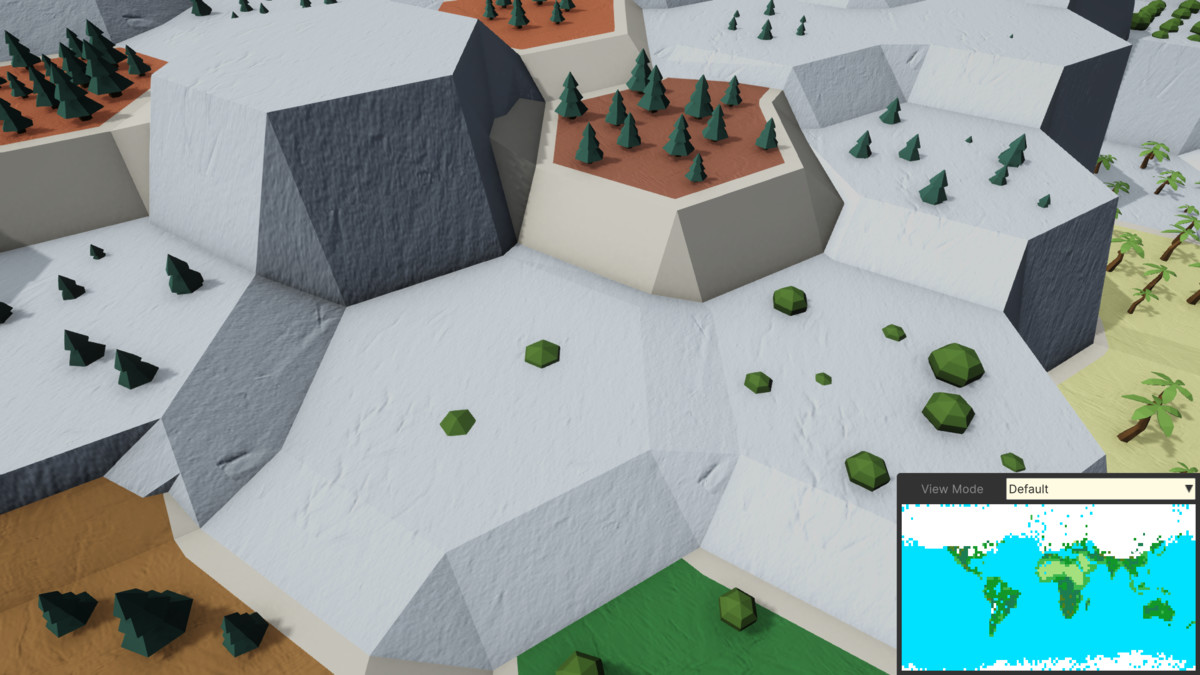

Hex Terrains Framework 2

Hex Terrains Framework 2 is a high-performance hex-based terrain and world simulation system built on Unity DOTS (Entities 1.0, Jobs, Burst).

Designed for large-scale strategy, 4X, simulation, and sandbox games, it enables the creation of massive, interactive hex worlds with modular architecture, runtime editing, and efficient parallel processing.

This is not just a terrain renderer — it is a scalable, layered world system built for long-term production use.

As a thank you to early supporters, all Version 1.0 owners receive Version 2.0 as a free upgrade.

Discord

Documentation

Class Reference

Each Terrain is represented as a single ECS Entity composed of modular Terrain Layers.

A Terrain Layer encapsulates its own structured Data Layers (per-cell maps) along with the logic responsible for rendering them.

A Data Layer stores a value for every terrain cell (such as float, int, Vector3, etc.), and these values can be visualized in different ways.

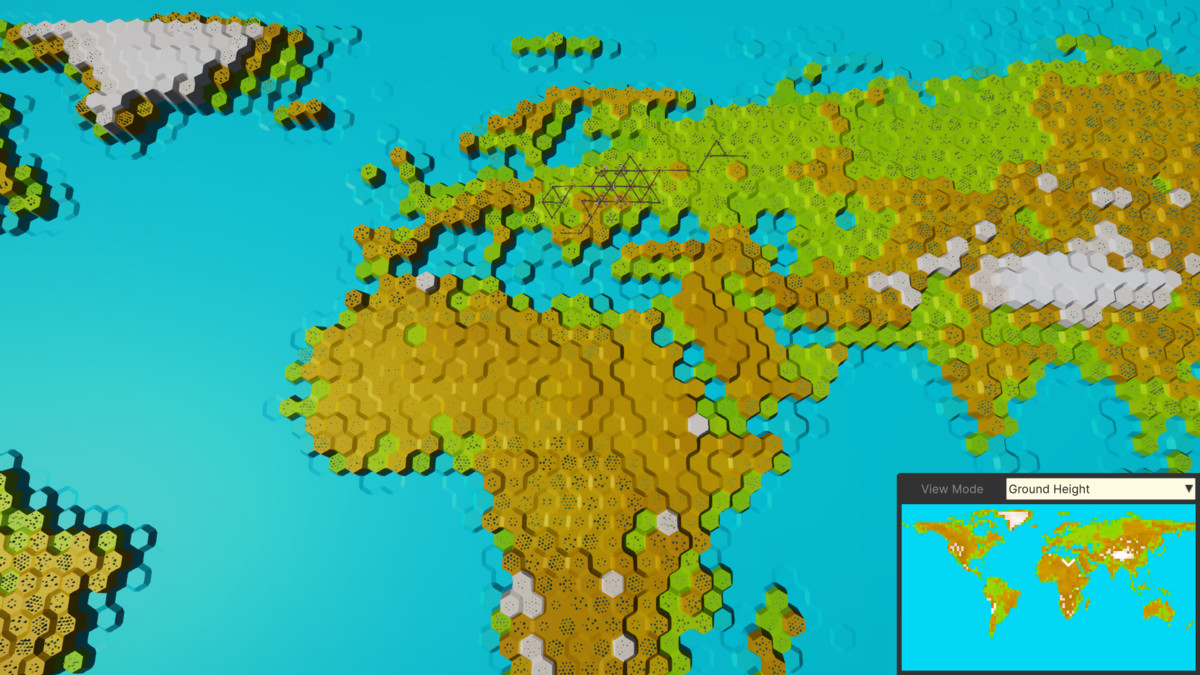

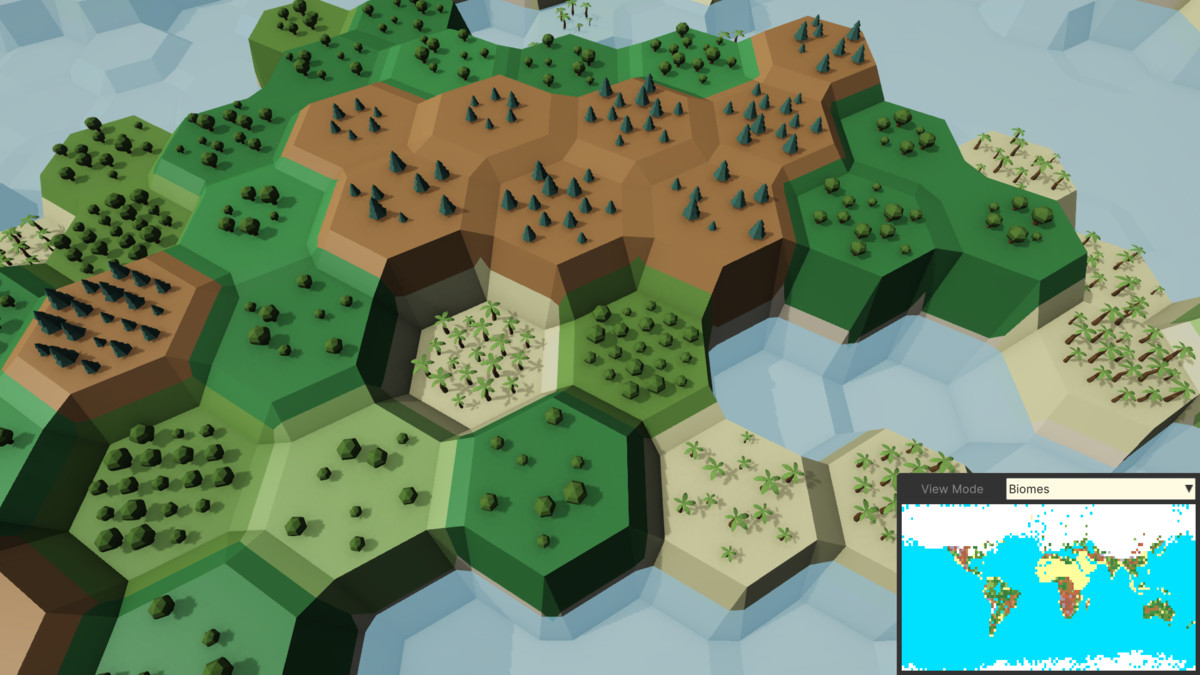

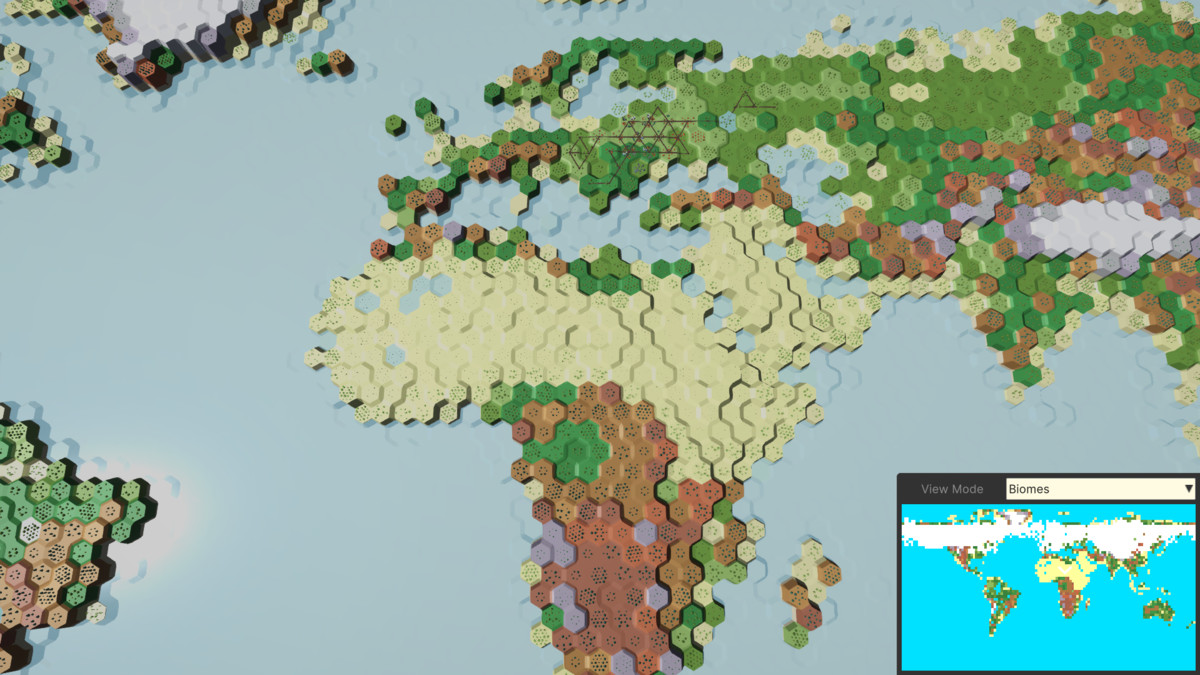

For example, values from the Height Map and Biome Map are rendered as a chunk mesh, where the cell height corresponds to the Height Map value and the cell texture corresponds to the Biome Map value.

Another example is the Cell Object Index Map, which stores an integer value for each cell. Each value corresponds to a 3D object from an object palette, which is then rendered on the respective terrain cell.

This separation allows clean simulation design, high performance, and full extensibility.

Terrain Layer Systems

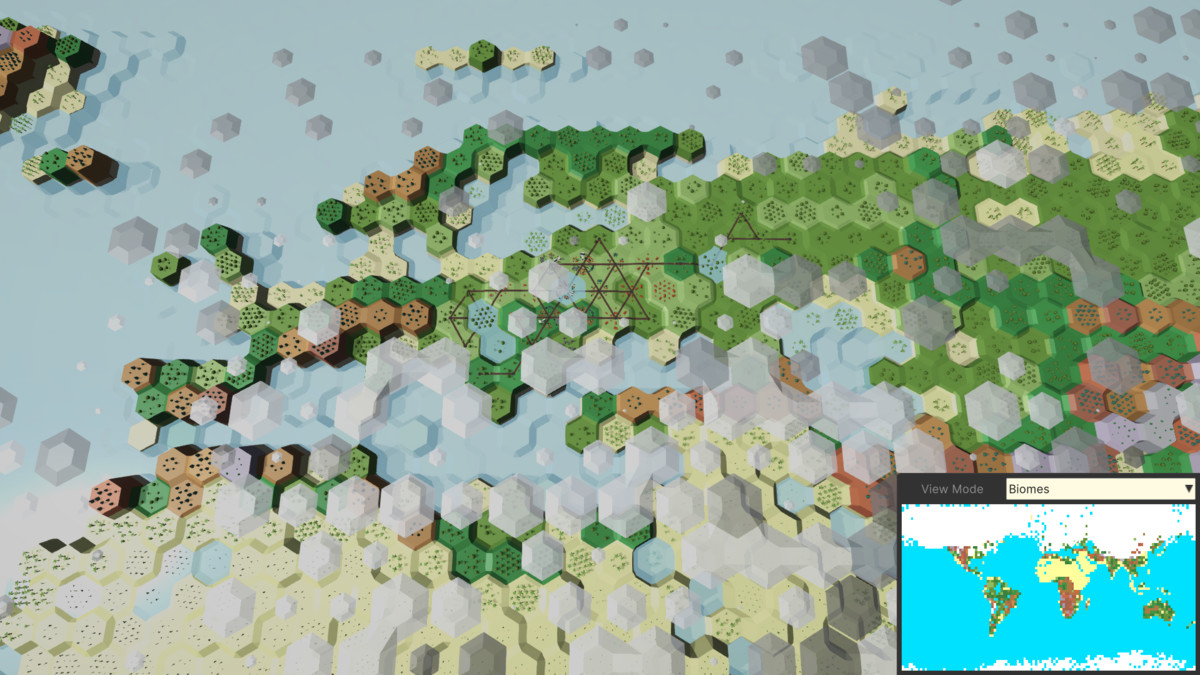

Chunk Mesh Layers

(Ground, Water, Snow, Roads, Clouds, Rain, etc.)

• Procedurally generated mesh per chunk
• Fully independent surface layers
• Custom or built-in mesh generators
• Designed for layered environmental rendering

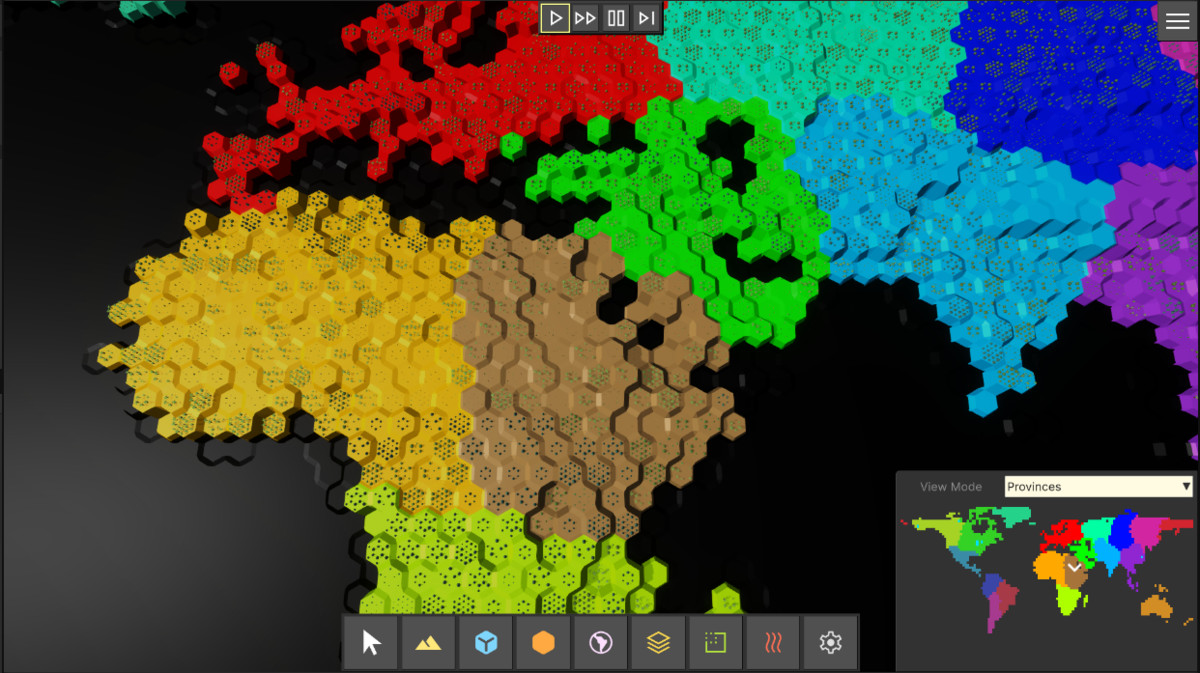

Cell Region Layers

(Countries, Provinces, Territories, etc.)

• Assigns a Region index per cell
• Caches cell indices per Region for fast queries
• Tracks total cell count per Region
• Automatically renders terrain using Region-based colors

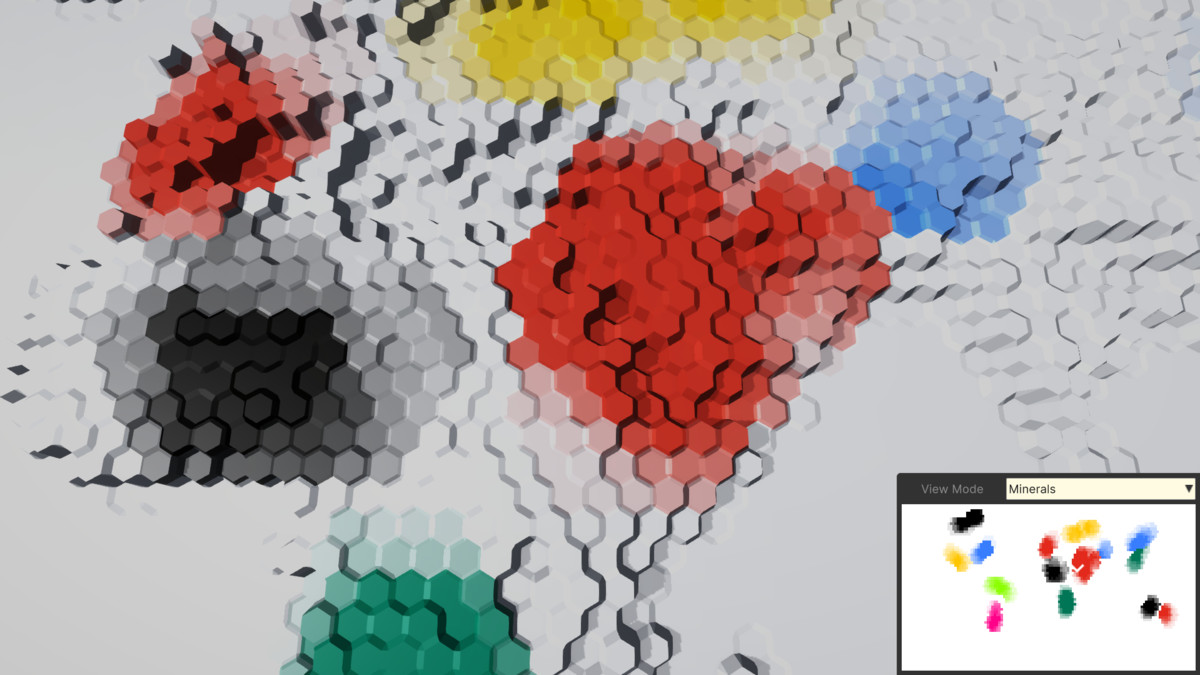

Cell Minerals Layer

(Underground minerals, Dissolved in Air/Water, etc.)

• Assigns a Mineral Index and Minerals Amount per cell
• Calculates a color map based on Minerals Color Palette, Mineral Index and Minerals Amount
• Automatically renders terrain using Mineral-based colors

Cell Entity Layers

(Trees, Buildings, Units, Props, etc.)

• One ECS Entity per cell
• Fully compatible with ECS workflows
• Suitable for simulation-heavy gameplay systems

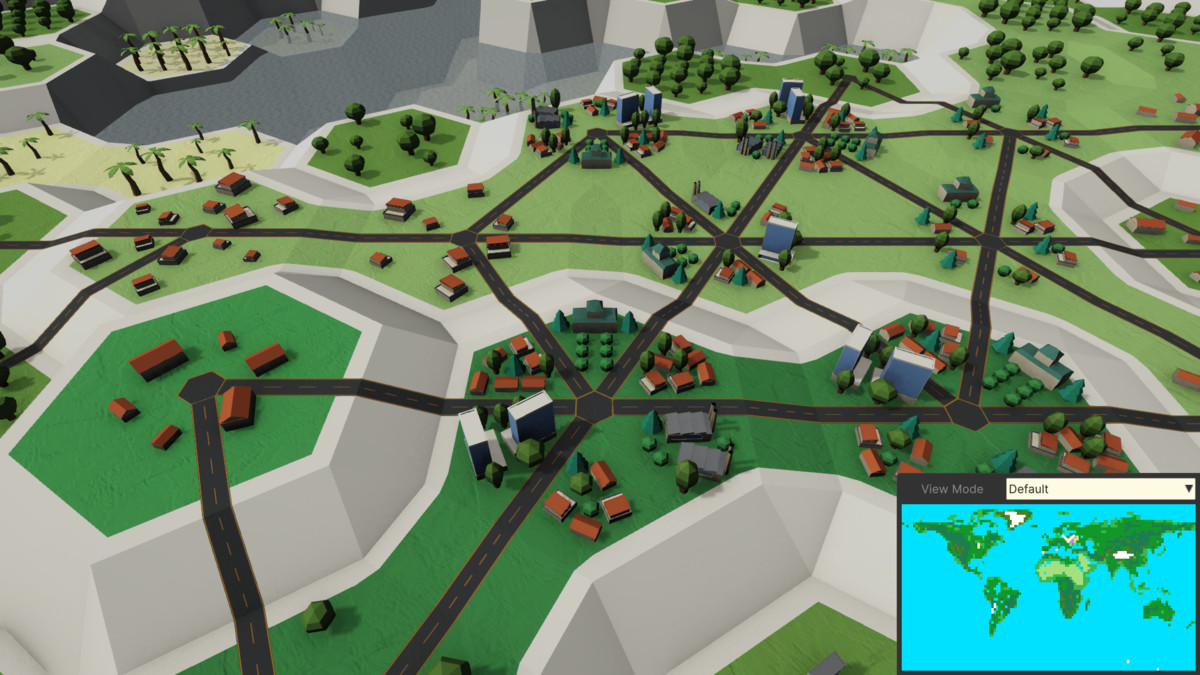

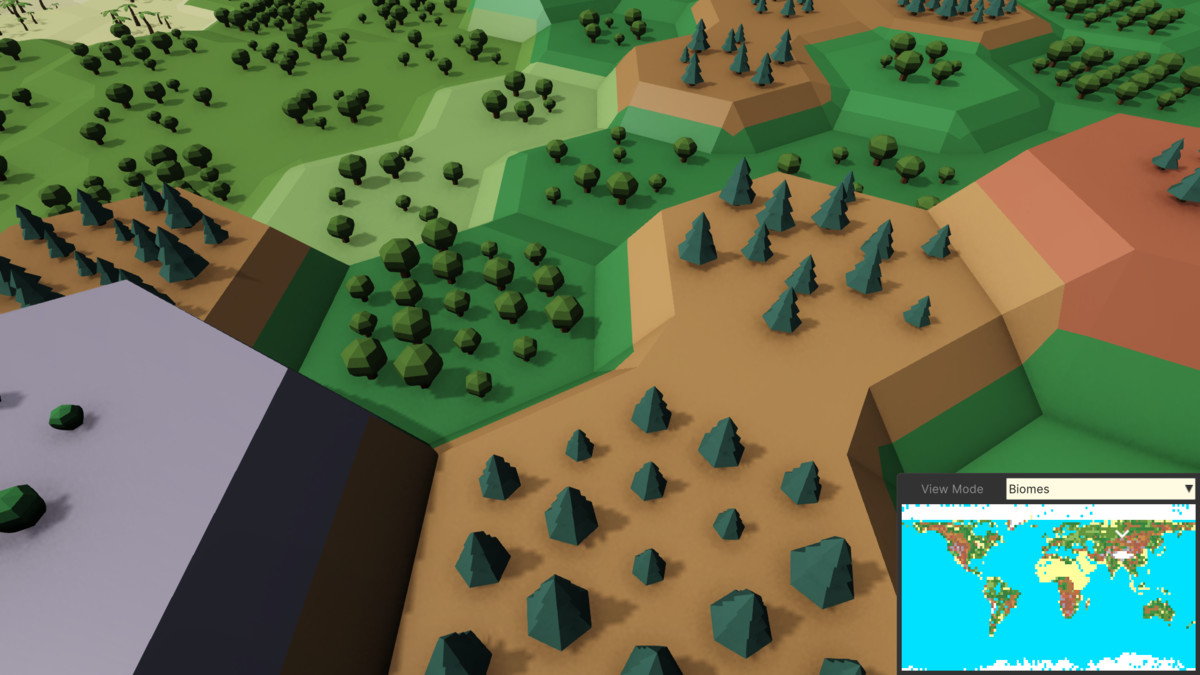

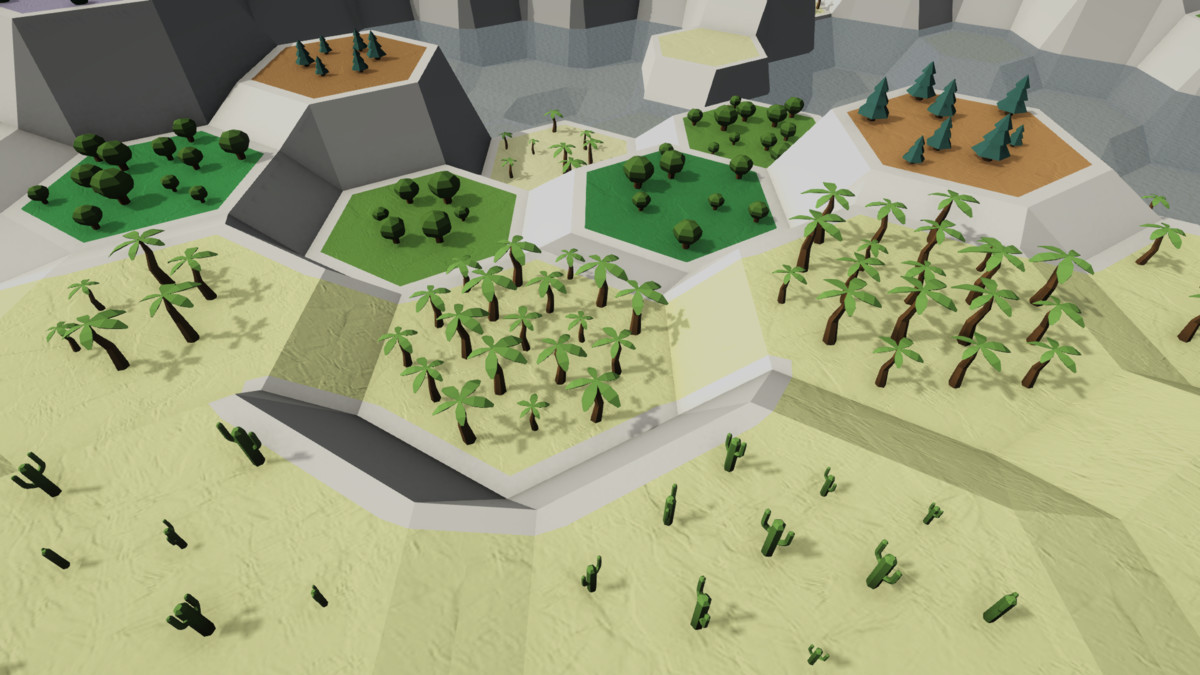

Cell Object Layers

(Trees, Buildings, Props, etc.)

• Lightweight static visual objects per cell
• Optimized alternative to ECS Entities
• Designed to support millions of objects per terrain

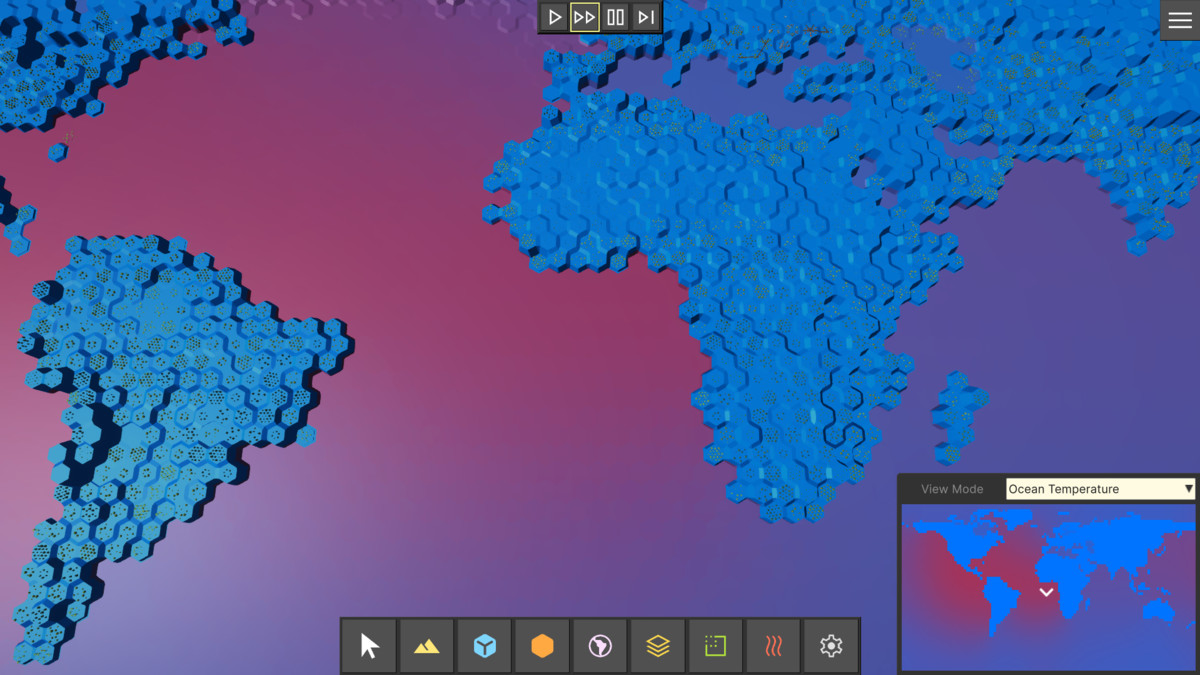

GeoPlast Layers

(Ground, Ocean, Snow, Atmosphere, Clouds, etc.)

Volumetric environmental simulation per cell, supporting:

• Amount
• Density
• Volume
• Heat
• Temperature

Features:

• Layer stacking (Water above Ground, Air above Water, Clouds above Air, etc.)
• Horizontal material flow (Ocean currents, cloud movement, lava, pollution, etc.)
• Vertical flow between layers
• Clouds condense into Rain
• Water freezes into Snow
• Snow melts into
• Water evaporates into Clouds


This enables emergent environmental behavior driven by simulation rather than scripted effects.

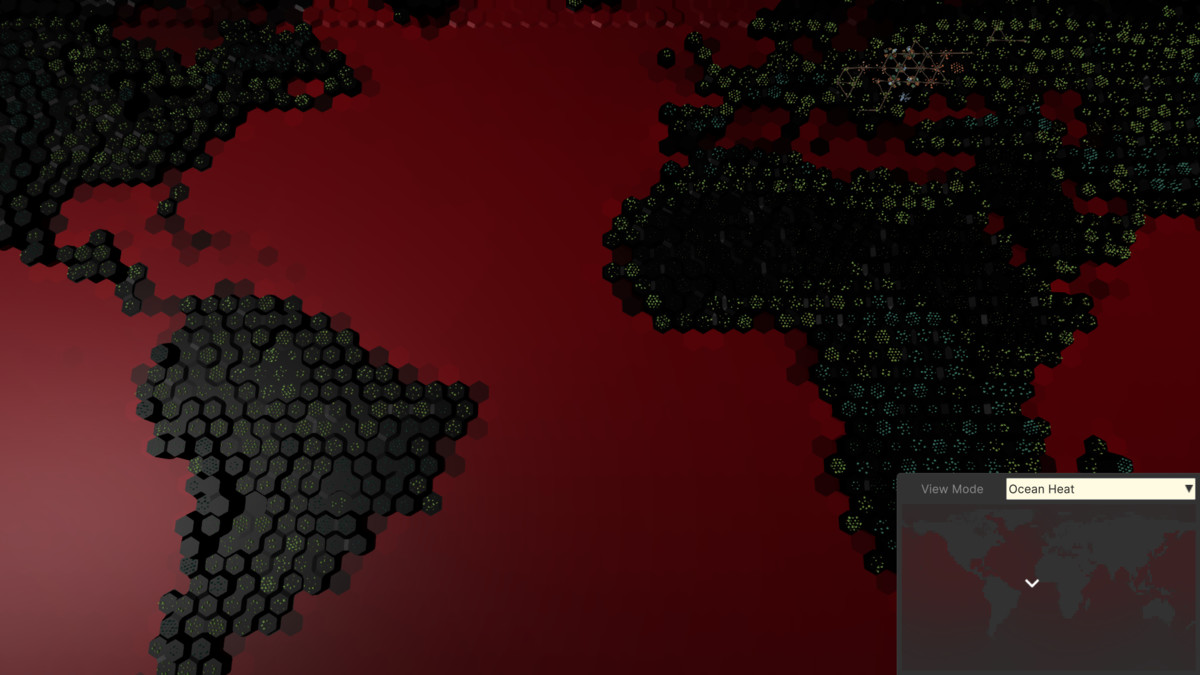

Sun Layer

A dynamic heat source that moves across the terrain.

• Configurable as a circular zone or directional line
• Heats nearby cells and cools distant ones
• Acts as the primary energy driver for climate simulation

The Sun Layer interacts with GeoPlast systems to produce natural weather cycles, freezing, melting, evaporation, precipitation, and heat-based material flow.

Core Features

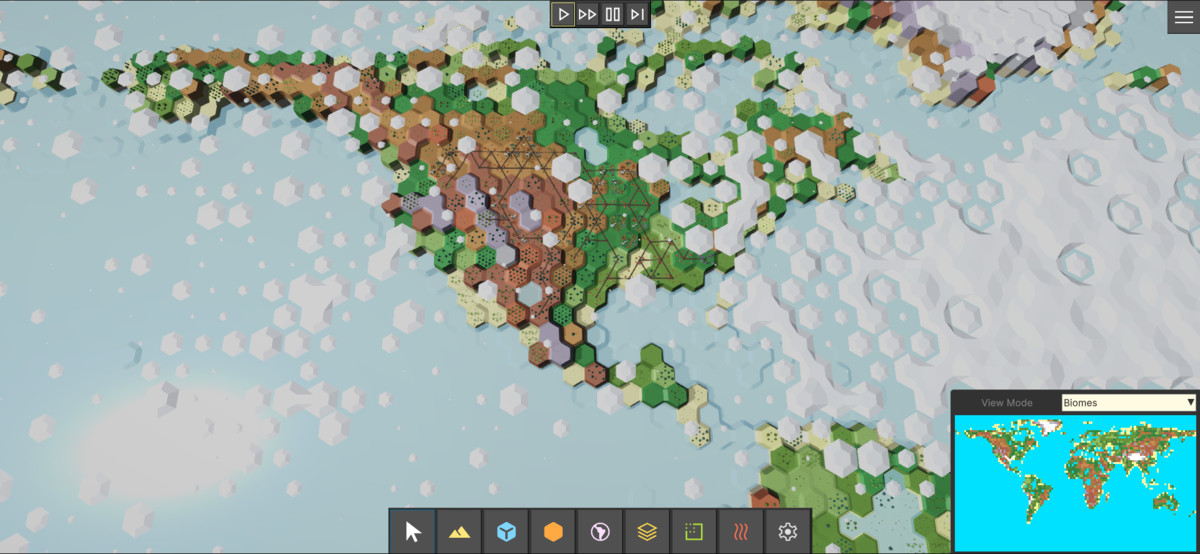

Runtime Terrain Editing

Modular extendable in-game terrain editor. Allows to edit all the data on the terrain

• Brush-based editing (size, opacity, stamping, sampling, auto-paint)
• Real-time feedback
• In-game UI Toolkit editor

Dynamic Terrain Creation

• Create terrains at runtime
• Custom dimensions, terrain settings, and resolution
• Regenerate or resize without restarting

Modular Terrain Layer Architecture

Create custom Terrain Layers composed of Data Maps such as height, biomes, regions, resources, entities, or custom gameplay values.

Each Data Layer:

• Is self-contained
• Uses per-chunk dirty flag tracking
• Supports job-safe dependency management
• Is architecturally separated from rendering

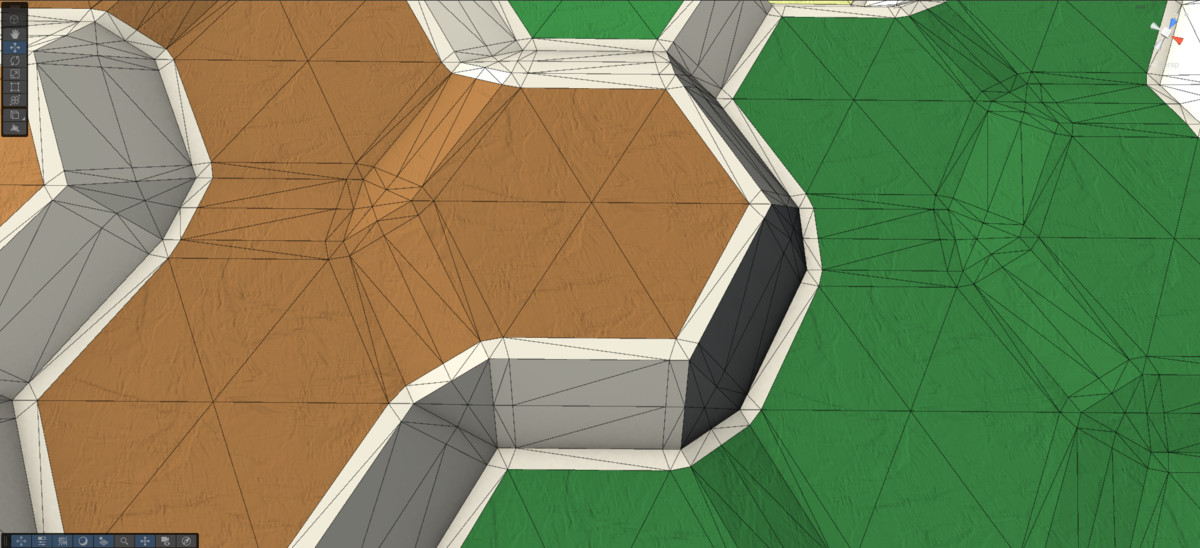

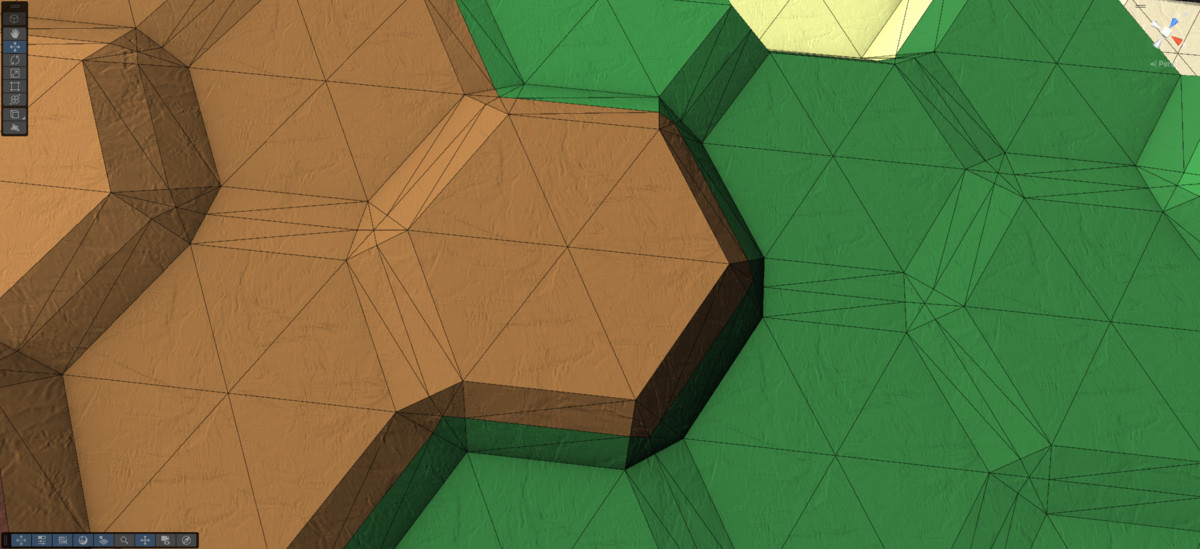

Highly Optimized Mesh Generation

• Burst-compiled jobs
• Chunk-based rebuild system
• Minimal allocations
• Extendable with custom generators

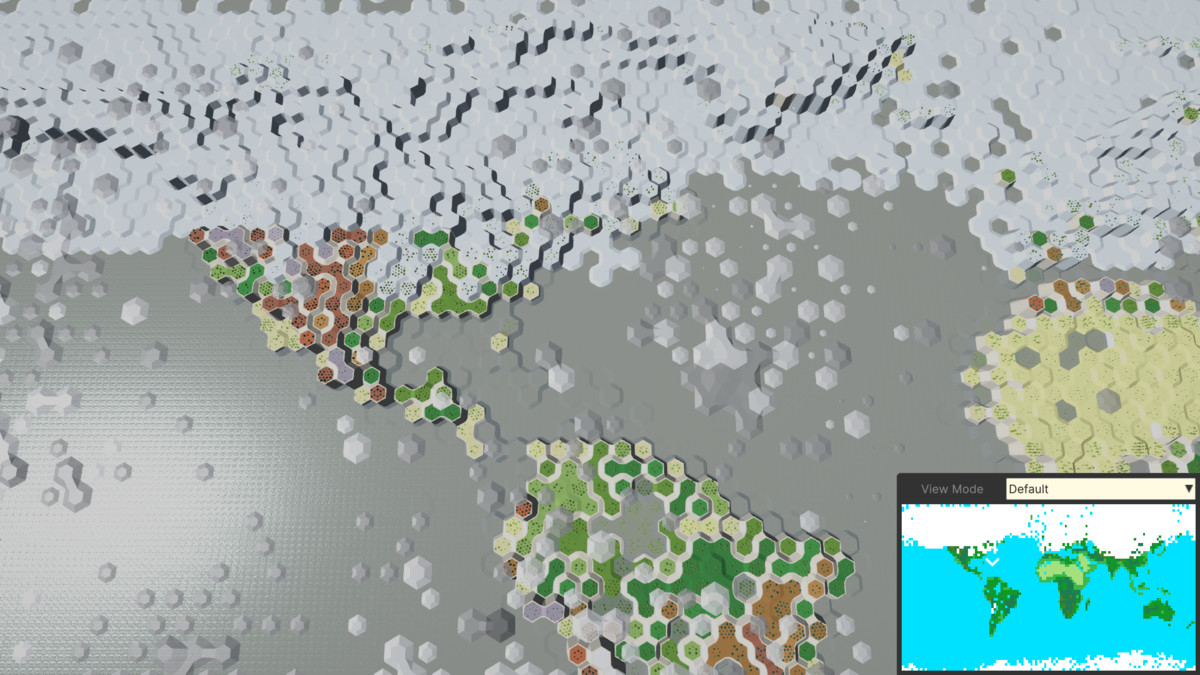

Minimap with Viewport Sync

• Real-time rendering of any data layer
• Click-to-center navigation
• Camera position indicator

Save / Load Support

• Modular binary serialization
• Saves full terrain state
• Includes all layers and runtime modifications

Wraparound Map Support

• Horizontal and vertical edge wrapping
• Seamless camera traversal
• Suitable for globe-style or Civilization-like maps

Performance by Default

Designed with scalability as a core principle — you only pay performance cost for the features you actually use.

• Feature-driven architecture ensures no unnecessary systems run in the background
• Mesh regeneration is limited to modified and visible chunks only
• Parallelized calculations powered by Burst-compiled jobs
• Optimized for large-scale terrains

Performance tested in standalone builds on terrains up to 300+ FPS on 4096×2048 (8,388,608 cells) static terrain (without simulation) with 5 layers (hardware-dependent).

Ideal For

• 4X and Strategy Games
• Simulation and Economy Games
• City Builders
• Custom World Editors
• ECS Learning Projects
• Games that require fully interactive hex terrain with high performance

Included

• Full source code (C# + DOTS)
• Demo project with HDRP and URP samples
• In-game terrain editor with sample tools
• Procedural brushes and auto-painting systems
• Modular, extendable UI framework
