CAD_CONNECT

by Team CMC

No ratings yet

  • Price drop

Transfer engineering CAD data (e.g. from Solidworks) into Unity using CAD_CONNECT, bridging CAD workflows and real-time 3D environments.

-34% $149.00 $99.00

Get 34% off on Asset Store

Affiliate link · Purchases support this site

Price history

Last 6 months

USD
Price history for CAD_CONNECT, 6 months Current $99.00; lowest $99.00; highest $99.00 in this period. $0 $50 $100 Jun Jul Aug Sep Oct Nov

Asset preview

1 / 8

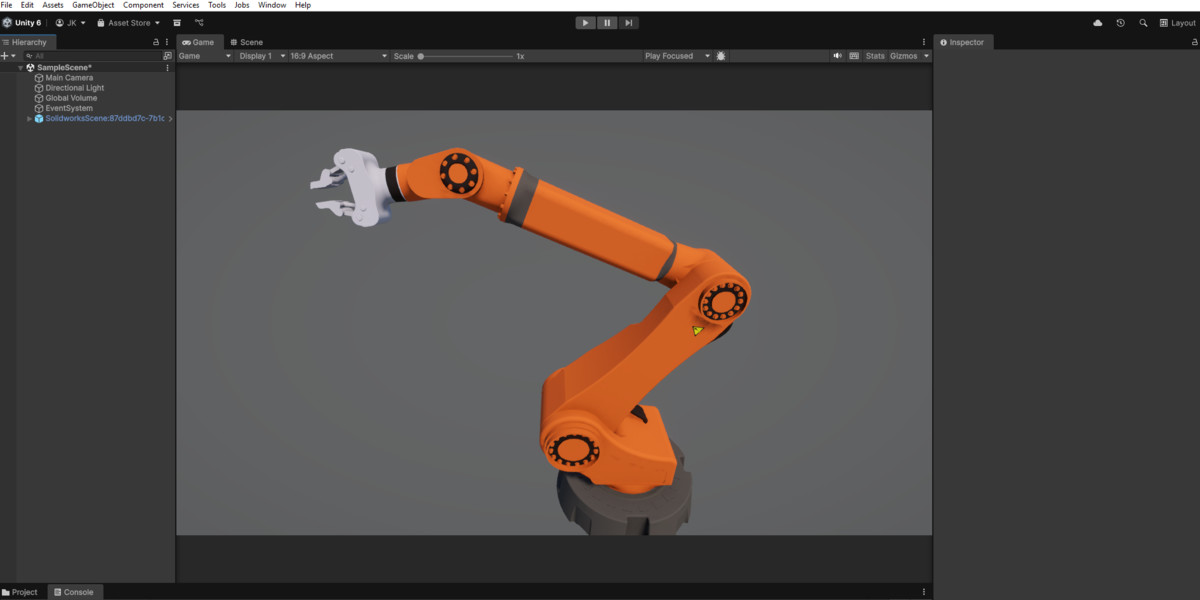

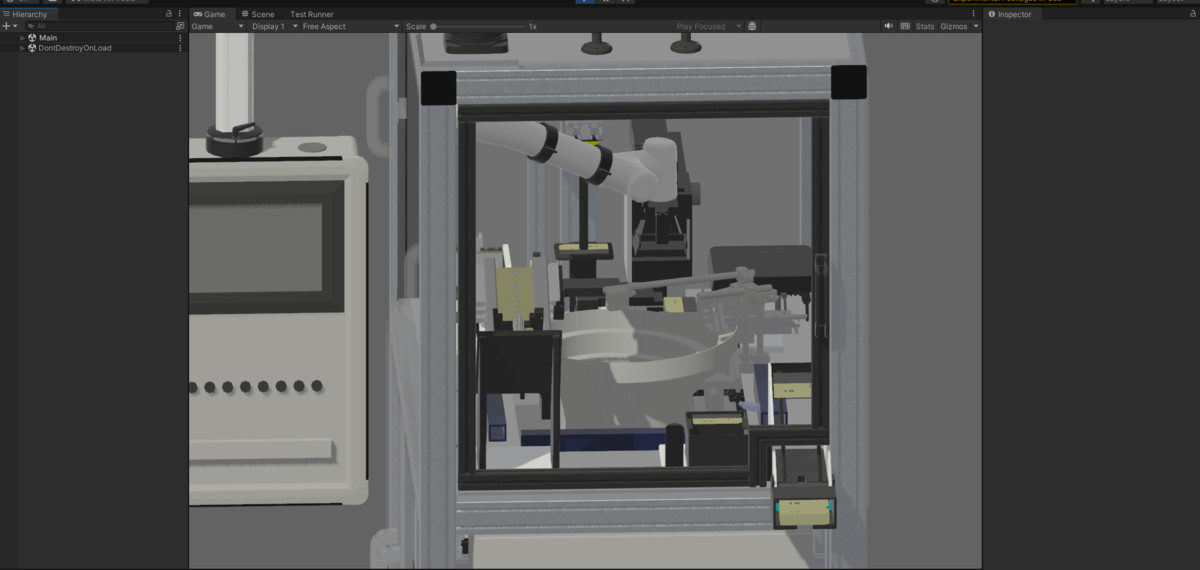

CAD_CONNECT screenshot 1

CAD_CONNECT screenshot 1

About this asset

CAD_CONNECT is a powerful Unity Editor extension that enables the transfer of CAD data (e.g. from Solidworks) directly into real-time 3D projects. Designed for engineers, developers, and XR creators, it allows you to bring complex CAD models into Unity quickly, reliably, and without unnecessary friction.

CAD_CONNECT focuses on a robust and efficient CAD workflow to ensure compatibility, stability, and high-quality results across a wide range of engineering data sources. Whether you are building a digital twin, an interactive product configurator, or an industrial training application, CAD_CONNECT ensures that your engineering data flows smoothly into your Unity project.

With CAD_CONNECT, you save time, reduce errors, and unlock the full potential of your SWX CAD data inside Unity.

From the publisher's Asset Store listing.

Technical details

  • Unity Editor extension with an integrated CAD import workflow (e.g. Solidworks)
  • Supports SWX 2022 or later
  • Preserves assembly hierarchy and material assignments
  • Efficiently handles large and complex assemblies
  • Compatible with Unity LTS versions (2021.3+, 2022.3+, 6.0+)

*This asset includes third-party components governed by their respective licenses. A complete list of all included third-party libraries and their licenses is provided inside the package.

  • CAD models must be provided in licensed SWX software. Transferring these models requires a compatible and licensed CAD application like Solidworks.
  • CAD_CONNECT is an independent tool and is not affiliated with or endorsed by any CAD software vendor.

Compatibility

Unity version Built-in URP HDRP
6000.0.55f1

As listed on the Asset Store.
